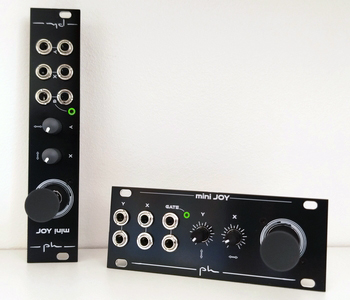

The JOY‘s little brother, this module is a two-dimensional voltage generator, controlled via a dual-axis joystick. Pressing the joystick generates a GATE signal.

The main advantage of this module is, of course, the ability to control six CV parameters of your modular system with one hand, or even a single finger. It’s compact (only 5 HP) and, in most cases, allows you to close a cover to protect your case, thanks to the joystick’s minimal protrusion (31 mm).

Explanation: The joystick generates a voltage between -5V and +5V on two axes simultaneously. A linear attenuator allows you to adjust the voltage output for each axis; each output has its own multiple.

The fact that the module is 180° reversible (depending on your configuration, whether you want the connections at the top or bottom of the module) can cause some ambiguity regarding the “X” and “Y” axes. Here’s a detailed explanation:

With the joystick at the top of the module, moving the joystick from left to right (“Y”) generates a voltage of +5V to -5V on the two dedicated outputs (when the attenuator is at 100%). Releasing the joystick returns it to its center position (0V).

Moving the joystick from bottom to top (“X”) generates a voltage of -5V to +5V on the two dedicated outputs (when the attenuator is at 100%). Releasing the joystick returns it to its center position (0V).

With the joystick at the bottom of the module, moving it from left to right (“Y”) generates a voltage of -5V to +5V on the two dedicated outputs (when the attenuator is at 100%). Releasing the joystick returns it to its central position (0V).

Pressing the joystick (“GATE”) increases the voltage on the two dedicated outputs to +5V. A green light ring indicates this action.

• Low joystick height (from the panel): 31mm
• Curved top surface for a comfortable grip
• Small footprint (5HP, 2.5 cm)
• Small footprint (5HP, 2.5 cm)
• 180° reversible module
• Skiff friendly
• Available on 1U (simple panel replacement)

Available with a black panel.

(without shipping costs).

To order, please contact me by email. The terms of payment, delivery times and shipping costs will be detailed to you by return email. Payment will only be in euros (€) and can be made by paypal or by check for metropolitan France. International delivery with tracking number.
Learn more about delivery terms.

Specifications :
Size 5HP, epoxy panel 1,6 mm.
Deep : 27mm (skiff friendly).
PCB in epoxy FR4 dual layer, 1,6 mm. Surface finish HASL.
Components tested and assembled by hand, in Brittany, France.
Available as an assembled Module, no kit.
In the box : M3 & nylon nuts.
Consumption: ~ 7 mA (+12V) / ~ 3 mA (-12V).

MANUAL : Soon

MODULARGrid LINK
